Pilot operated needle valves for hydrogen

(7 produkter)

Sortér efter:

Pneumatic actuated needle valve (NC) with special stem. (1.050 bar)

Air operated needle valve (NC) for hydrogen.
Pressure: (max.): 1.050 bar/15.000 psi.
Normally closed (NC), Air to open.

Atex approved
Air pressure, actuator: 5 - 8 bar

Materials:
Actuator: AW6026
Valve body: 1.4404 / AISI316L
Gasket, valve: PTFE

Pressure test certificate
Leak test certificate
Drawing with main dimensions
BOM for spare parts

* Media temperature: -60°C to +200°C (Valve)
* Ambient temperature: -20°C to +100°C. (Optional -46°C to +100°C)
* Media temperature: -60°C to +100°C (Actuator with "cold neck", only)

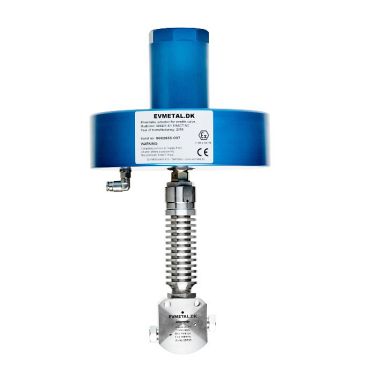

Pneumatic actuated needle valve (NC) with "cold-neck" (1.050 bar)

Air operated needle valve (NC) for hydrogen .
Pressure (max.): 1.050 bar/ 15.000 psi.
Normally closed (NC), Air to open.

Atex approved
Air pressure actuator: 5 - 8 bar

Material:
Actuator: AW6026
Valve body: 1.4404 / AISI316L
Gasket valve: PTFE

Pressure test certificate
Leak test certificate
Drawing with main dimensions
BOM for spare parts

* Media temperature: -60°C to +200°C (Valve)
* Ambient temperature: -20°C to +100°C. (Optional -46°C to +100°C)
* Media temperature: -60°C to +100°C (Actuator with "cold-neck", only)

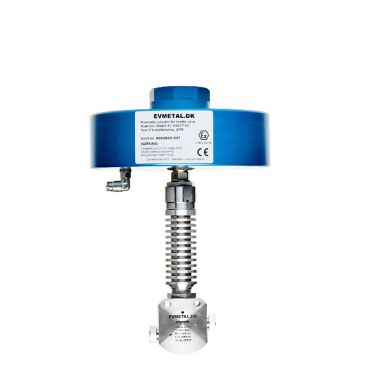

Pneumatic actuated needle valve (NO) with "cold-neck". (1.050 bar)

Air operated needle valve
Pressure (max.): 1.050 bar/15.000 psi
Normally open (NO), Air to close.

Atex approved
Air pressure actuator: 5 - 8 bar

Material:
Actuator: AW6026
Valve body: 1.4404 / AISI316L
Gasket valve: PTFE

Pressure test certificate
Leak test certificate
Drawing with main dimensions
BOM for spare parts

* Media temperature: -60°C to +200°C (Valve)
* Ambient temperature: -20°C to +100°C. (Optional -46°C to +100°C)
* Media temperature: -60°C to +100°C (Actuator with "cold-neck", only)

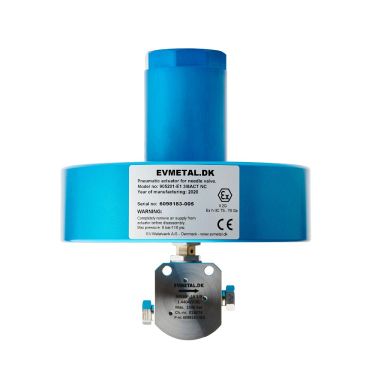

Pneumatic actuated needle valve (NC), (1.500 bar)

Air operated needle valve (NC) for hydrogen.
Pressure (max.): 1.500 bar/ 21.500psi.
Normally closed (NC), Air to open.

Atex approved
Air pressure actuator: 5 - 8 bar

Material:
Actuator: AW6026
Valve body: 1.4404 / AISI316L
Gasket valve: PTFE

Pressure test certificate
Leak test certificate
Drawing with main dimensions
BOM for spare parts

* Media temperature: -60°C to +200°C (Valve)
* Ambient temperature: -20°C to +100°C. (Optional -46°C to +100°C)
* Media temperature: -40°C to +100°C (Actuator with "cold-neck", only.)

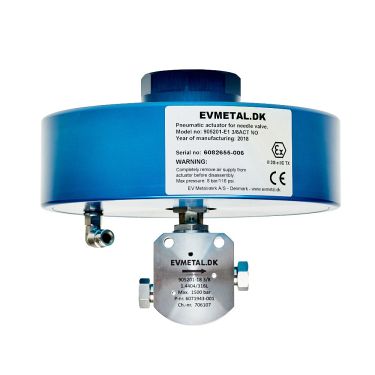

Pneumatic actuated needle valve (NO), (1.500 bar)

Air operated needle valve for hydrogen.
Pressure (max.): 1.500 bar/ 21.500 psi.
Normally closed (Air to open).

Atex approved
Air pressure actuator: 5 - 8 bar

Material:
Actuator: AW6026
Valve body: 1.4404 / AISI316L
Gasket valve: PTFE

Pressure test certificate
Leak test certificate
Drawing with main dimensions
BOM for spare parts

* Media temperature: -60°C to +200°C (Valve)
* Ambient temperature: -20°C to +100°C. (Optional -46°C to +100°C)
* Media temperature: -40°C to +100°C (Actuator with "cold-neck")

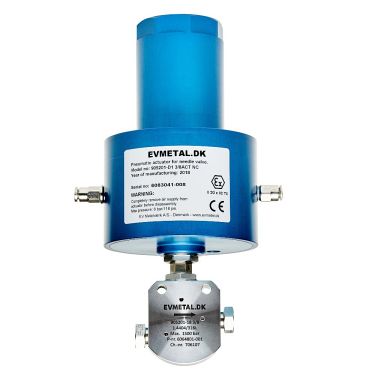

Pneumatic actuated needle valve (NC), Double piston, (1.500 bar)

Air operated needle valve (NC) with double piston.
Pressure (max.): 1.500 bar / 21.500 psi
Normally closed (Air to open).

Atex approved
Air pressure actuator: 5 - 8 bar

Material:
Actuator: AW6026
Valve body: 1.4404 / AISI316L
Gasket valve: PTFE

Pressure test certificate
Leak test certificate
Drawing with main dimensions
BOM for spare parts

* Media temperature: -60°C to +200°C (Valve)
* Ambient temperature: -20°C to +100°C. (Optional -46°C to +100°C)
* Media temperature: -40°C to +100°C (Actuator with "cold-neck", only)

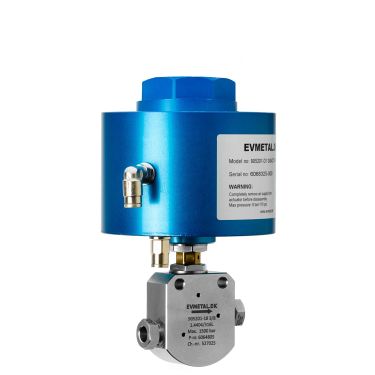

Pneumatic actuated needle valve (NO), Double piston, (1.500 bar)

Air operated needle valve (NO) for hydrogen.
Pressure (max.): 1.500 bar/ 21.500 psi.
Normally closed (NC), Air to open.

Atex approved
Air pressure actuator: 5 - 8 bar

Material:
Actuator: AW6026
Valve body: 1.4404 / AISI316L
Gasket valve: PTFE

Pressure test certificate
Leak test certificate
Drawing with main dimensions
BOM for spare parts

* Media temperature: -60°C to +200°C (Valve)
* Ambient temperature: -20°C to +100°C. (Optional -46°C to +100°C)
* Media temperature: -40°C to +100°C (Actuator with "cold-neck", only)
