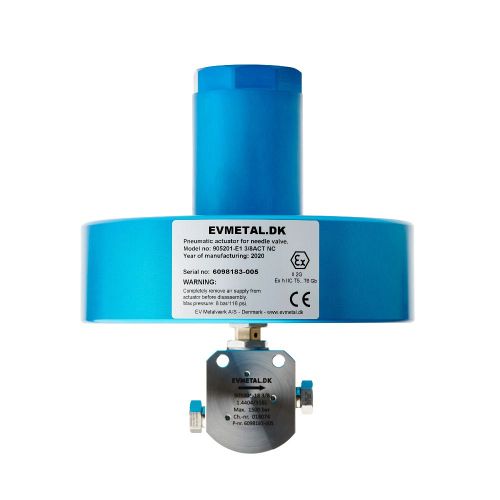

Pneumatic actuated needle valve (NC)

Air operated needle valve (NC) for hydrogen.
Pressure (max.): Please see below data sheet.
Normally closed (NC), Air to open.

Atex approved
Air pressure actuator: 5 - 8 bar

Material:
Actuator: AW6026
Valve body: 1.4404 / AISI316L
Gasket valve: PTFE

Pressure test certificate
Leak test certificate
Drawing with main dimensions
BOM for spare parts

* Media temperature: -60°C to +200°C (Valve)
* Ambient temperature: -20°C to +100°C. (Optional -46°C to +100°C)
* Media temperature: -40°C to +100°C (Actuator with "cold-neck", only.)

Product details

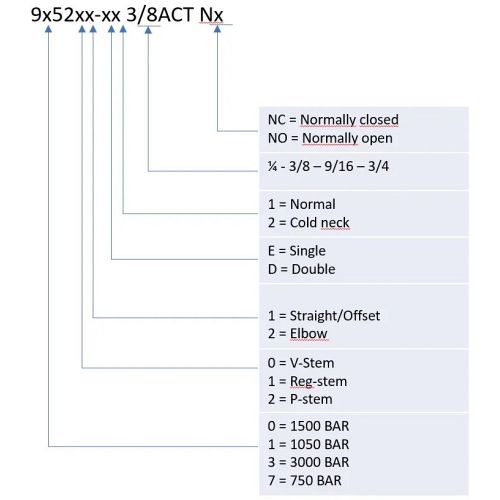

Item number: Tube O.D.: D Inches.  Tube O.D.: D1 Inches.  Max. working pressure: Bar. Characteristics: Connections: Specification:
905202-E1 1/4 ACT NC 1/4" 1/4" 1500 V-stem Angle Product on request.
905201-E1 1/4 ACT NC 1/4" 1/4" 1500 V-stem Offset Product on request.
905202-E1 3/8 ACT NC 3/8" 3/8" 1500 V-stem Angle Normally closed (Air to open)
905201-E1 3/8 ACT NC 3/8" 3/8" 1500 V-stem Offset Normally closed (Air to open)
975202-E1 9/16 ACT NC 9/16" 9/16" 750 V-stem Angle Normally closed (Air to open)
975201-E1 9/16 ACT NC 9/16" 9/16" 750 V-stem Offset Normally closed (Air to open)
'
