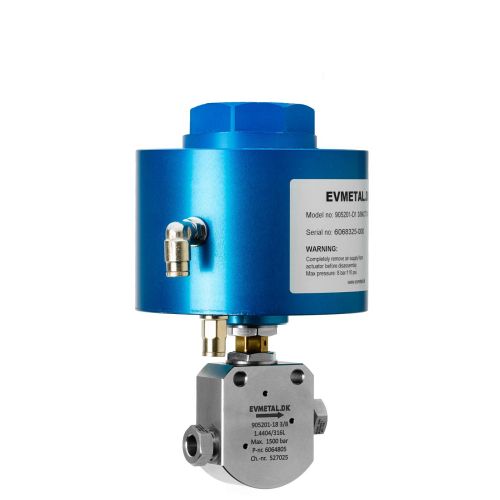

Pneumatic actuated needle valve (NO), Double piston, (1.500 bar)

Air operated needle valve (NO) for hydrogen.
Pressure (max.): 1.500 bar/ 21.500 psi.
Normally closed (NC), Air to open.

Atex approved
Air pressure actuator: 5 - 8 bar

Material:
Actuator: AW6026
Valve body: 1.4404 / AISI316L
Gasket valve: PTFE

Pressure test certificate
Leak test certificate
Drawing with main dimensions
BOM for spare parts

* Media temperature: -60°C to +200°C (Valve)
* Ambient temperature: -20°C to +100°C. (Optional -46°C to +100°C)
* Media temperature: -40°C to +100°C (Actuator with "cold-neck", only)

Details about the product
Item number: Tube: O.D. D inch.  Tube: O.D. D1 inch.  Max. working pres. Regulating Connections Specification
915212-D1 1/4ACT NO 1/4" 1/4" 1050 MP regulation Angle Normally open (Air to close)
915211-D1 1/4ACT NO 1/4" 1/4" 1050 MP regulation Offset Normally open (Air to close)
915202-D1 1/4ACT NO 1/4" 1/4" 1050 MP V-stem Angle Normally open (Air to close)
915201-D1 1/4ACT NO 1/4" 1/4" 1050 MP V-stem Offset Normally open (Air to close)
915212-D1 3/8ACT NO 3/8" 3/8" 1050 MP regulation Angle Normally open (Air to close)
915211-D1 3/8ACT NO 3/8" 3/8" 1050 MP regulation Offset Normally open (Air to close)
915202-D1 3/8ACT NO 3/8" 3/8" 1050 MP V-stem Angle Normally open (Air to close)
915201-D1 3/8ACT NO 3/8" 3/8" 1050 MP V-stem Offset Normally open (Air to close)
975212-D1 9/16ACT NO 9/16" 9/16" 750 MP regulation Angle Normally open (Air to close)
975211-D1 9/16ACT NO 9/16" 9/16" 750 MP regulation Offset Normally open (Air to close)
975202-D1 9/16ACT NO 9/16" 9/16" 750 MP V-stem Angle Normally open (Air to close)
975201-D1 9/16ACT NO 9/16" 9/16" 750 MP V-stem Offset Normally open (Air to close)
905212-D1 9/16ACT NO 9/16" 9/16" 1500 MP regulation Angle Normally open (Air to close)
905211-D1 9/16ACT NO 9/16" 9/16" 1500 MP regulation Offset Normally open (Air to close)
905202-D1 9/16ACT NO 9/16" 9/16" 1500 MP V-stem Angle Normally open (Air to close)
905201-D1 9/16ACT NO 9/16" 9/16" 1500 MP V-stem Offset Normally open (Air to close)
915212-D1 3/4 ACT NO 3/4" 3/4" 1050 MP regulation Angle Normally open (Air to close)
915211-D1 3/4 ACT NO 3/4" 3/4" 1050 MP regulation Offset Normally open (Air to close)
915202-D1 3/4 ACT NO 3/4" 3/4" 1050 MP V-stem Angle Normally open (Air to close)
915201-D1 3/4 ACT NO 3/4" 3/4" 1050 MP V-stem Offset Normally open (Air to close)
