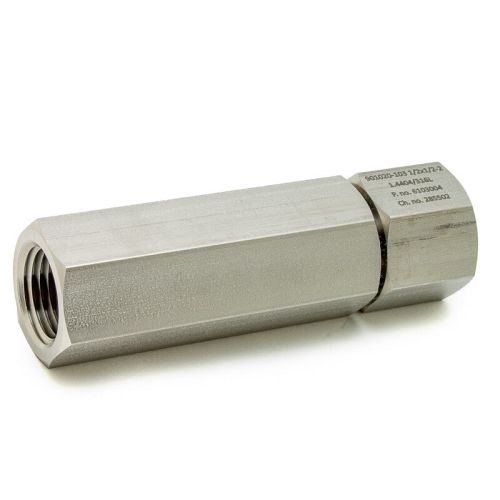

Check valve with ball for hydrogen (901021-103)

EV HYDROGEN® check valve with ball for hydrogen.

Item number: 901021-103

To prevent reverse flow and where a tight shut-off is not mandatory, EV HYDROGEN® ball check valves are a must. The ball check valves are designed with a floating ball, and a cradled seat. The design gives a full flow around the ball which minimizes the pressure drop.

Design pressure: 1.050 Bar / 15.000 Psi
Maximum working pressure: 1.050 Bar / 15.000 Psi
Temperature range: -60°C to +200°C.
Connections: NPTF
Opening pressure: 2 Bar/ 29 Psi.

EV HYDROGEN® ball check valves comply with Pressure Equipment Directive (PED) 2014/68/EC.

Product details
 Item number: Dimension: Inches  Connection ends: Max. working pressure: Bar/ Psi Length: mm   Flow coefficient: (Kv)  Hex: mm
 901021-103 1/2  1/2"  NPTF 1.050/ 15.000  98  TBA  TBA




'
