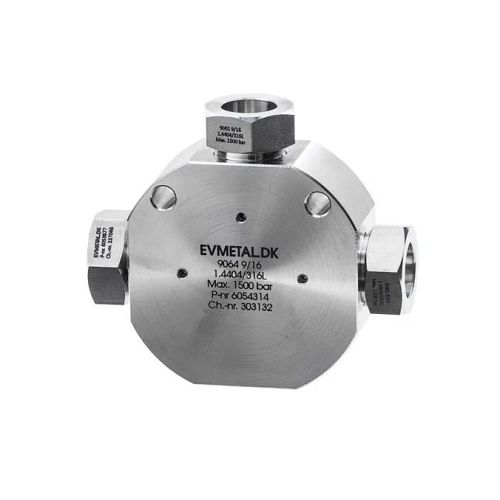

Tee coupling (9064)



Connection: Cone and thread.
Design pressure: 1.500 bar/21.500psi
Max. working pressure: 1.500 bar/21.500psi
Operating temperature: -60°C to +200°C
Material: 1.4404 / AISI316L

Product details
Item number: Tube O.D. D inch.  Tube O.D. D1 inch. Tube O.D. D2 inch. Max. working pres. Length mm: Width mm: Height mm:
9064 1/4 1/4 1/4 1/4 1500 39,1 16,0 39,1
9064 3/8x1/4x3/8 3/8  1/4 3/8  1500 50,8  20,0 50,8
9064 3/8 3/8  3/8  3/8 1500 50,8 20,0 50,8
9064 3/8x9/16x3/8 3/8  9/16  3/8 1500 63,5 26,0 63,5
9064 9/16x3/8x9/16 9/16  3/8 9/16 1500 63,5 26,0 63,5
9064 9/16 9/16  9/16 9/16 1500 63,5 26,0 63,5
9064 9/16x9/16x3/8
9064 9/16x3/4x9/16 9/16  3/4 9/16 1500 76,2 35,0 76,2
9064 3/4x3/8x3/4 3/4  3/8 3/4 1500 76,2 35,0 76,2
9064 3/4x9/16x3/4 3/4  9/16 3/4 1500 76,2 35,0 76,2
9064 3/4x3/4x9/16 3/4  3/4 9/16 1500 76,2 35,0 76,2
9064 3/4x1/4x3/4 3/4 1/4 3/4 1500 76,2 35,0 76,2
9064 3/4 3/4  3/4 3/4 1500 76,2 35,0 76,2
9064 1x3/8x1 3/8 1 1500 105 45,0 105
9064 1 1 1 1500 105 45,0 105
'
